BendPak P9000LTF Flush-Mount Open-Center Pit-Style Low-Rise Lift - 9,000-lbs. Capacity
USD 4,343
USD 6,205
SKU 5175155
Create a cleaner service bay with the P9000LTF flush-mount low-rise lift, built for 9,000-lbs. capacity and professional shop workflow. Its recessed installation keeps the floor area more open when lowered, while the open-center design supports brake, tire, suspension, body and general repair work. This low-rise car lift is a strong fit for shops that want dependable lifting performance with less above-floor obstruction.
Zero-Footprint Low-Rise Lift Power for Busy Service Bays
The BendPak P9000LTF Flush-Mount Open-Center Pit-Style Low-Rise Lift brings 9,000 lbs. of lifting capacity into a recessed, drive-over layout that virtually disappears when lowered. Built for fast-lube facilities, repair shops, and high-volume service bays, this flush-mount low-rise lift gives technicians frame-engaging support without leaving bulky equipment in the way. Its open-center design keeps undercarriage access clear, while the flush-mount configuration preserves shop movement in tight or busy areas. For shops that want low-rise lifting power, clean floor flow, and a more permanent recessed installation, the P9000LTF is the tidy, high-capacity answer.

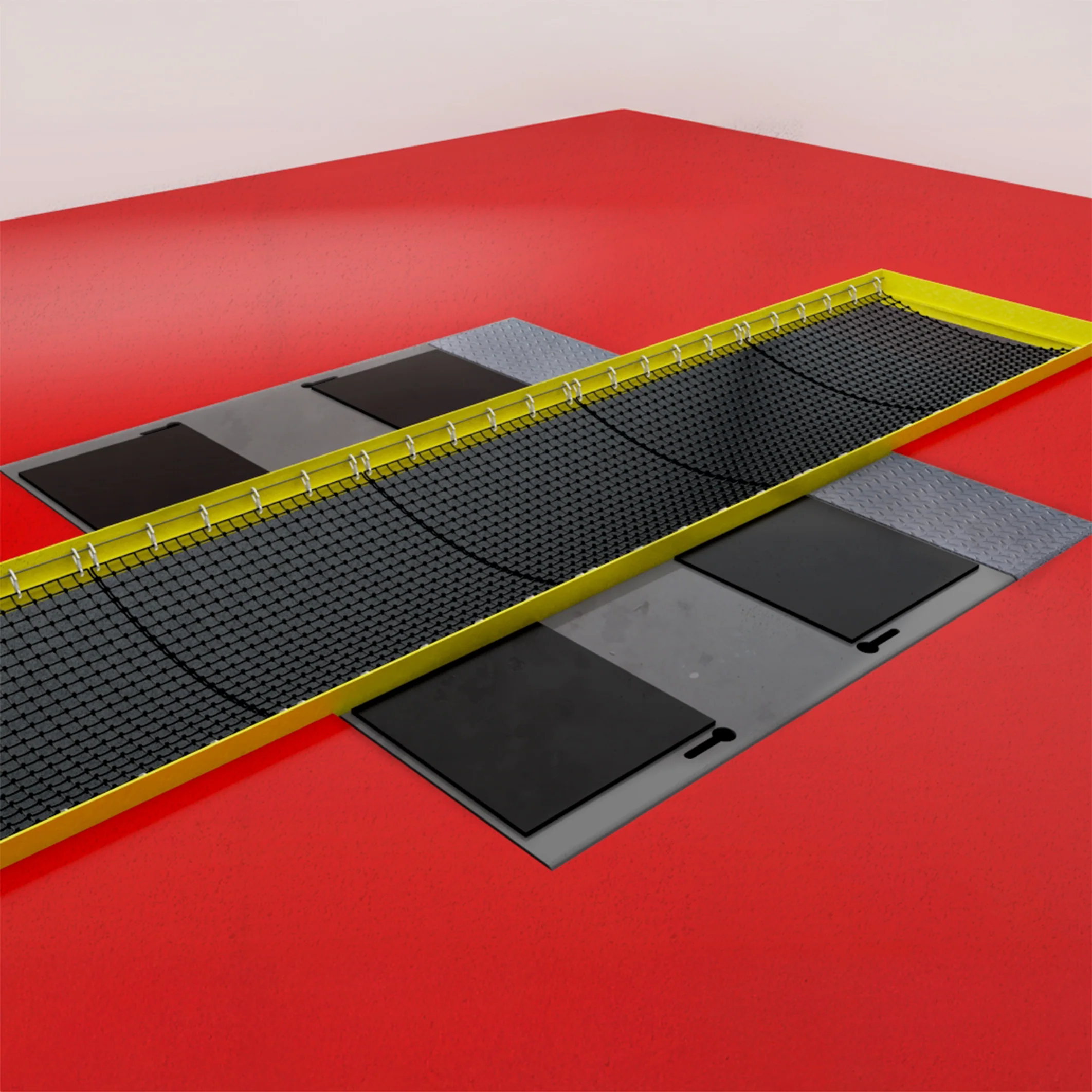

Flush-Mount Design That Keeps the Bay Open
When installed flush with the concrete, the P9000LTF creates a low-profile drive-over service area that stays out of the way until it is needed. This zero-footprint style helps reduce clutter in busy shops and makes vehicle movement easier around tight service lanes. The lift is especially useful for pit-style operations and facilities that want a recessed drive-over option. It maintains the benefits of low-rise lifting while helping the work area remain clean, open, and easy to navigate.
9,000-lb. Low-Rise Muscle with Pneumatic Safety Locks

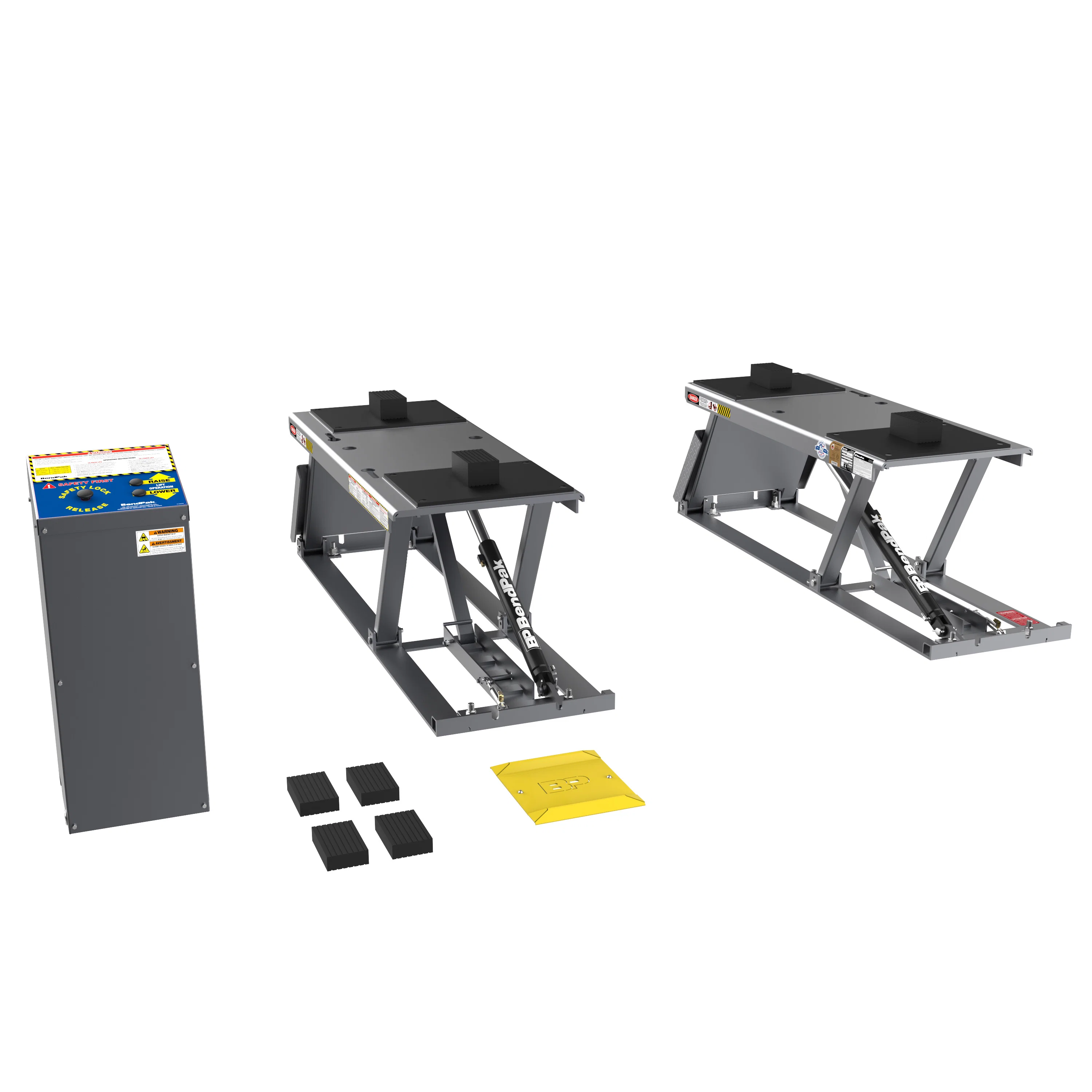

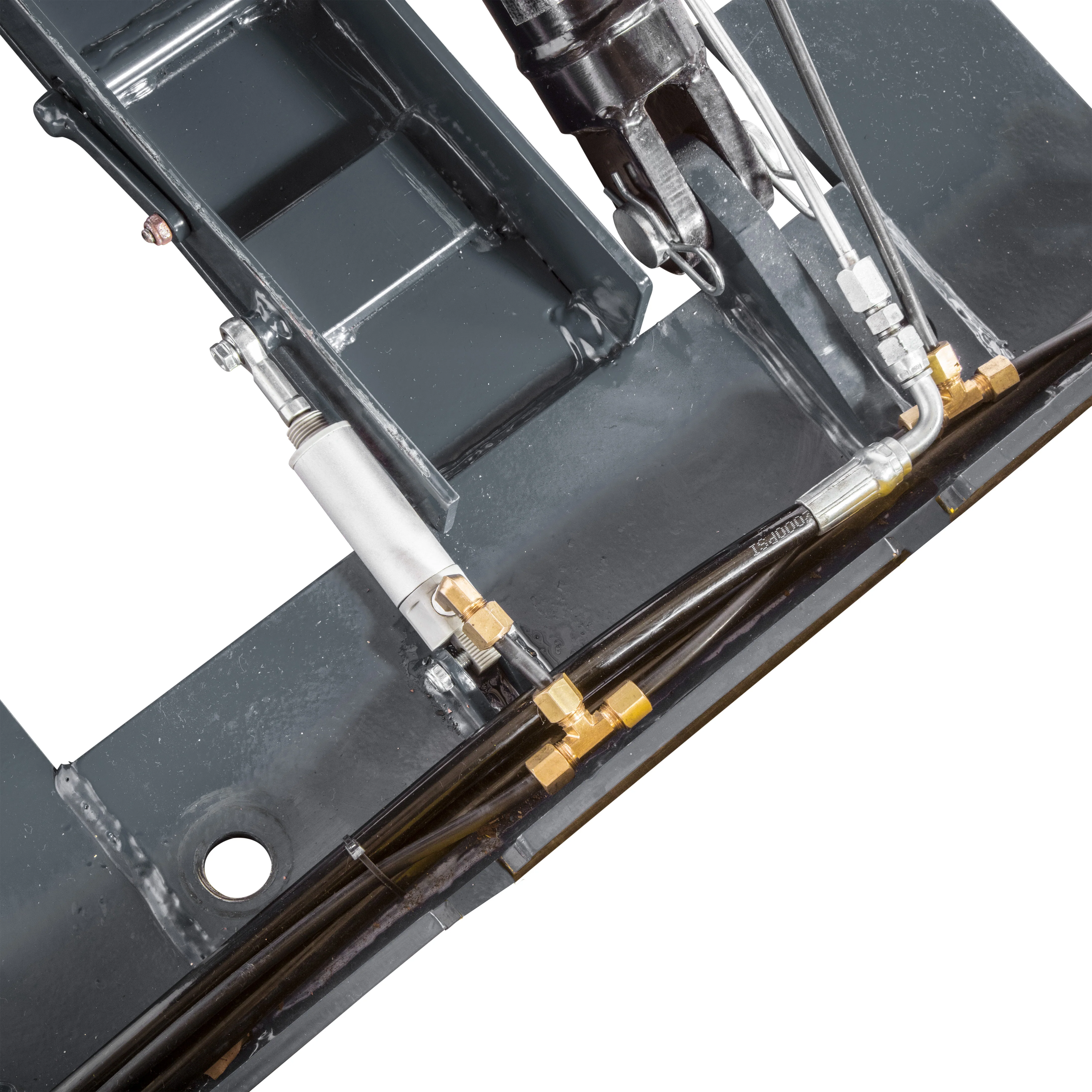

The P9000LTF uses a heavy-duty 1.5 HP electric-hydraulic power unit, dual hydraulic cylinders, and a dual-pump power unit with a built-in proportioning valve to support smooth low-rise lifting. Reinforced parallel lifting arms and reinforced upper lift platforms help support inboard loading for a wider range of service work. Automatic multi-position safety locks with air release provide remote lock control during operation. The pneumatic release system avoids older spring-style mechanisms and helps maintain safe, efficient lowering in flush-mounted service environments.
Rubber Contact, Optional Arms, and BendPak Durability

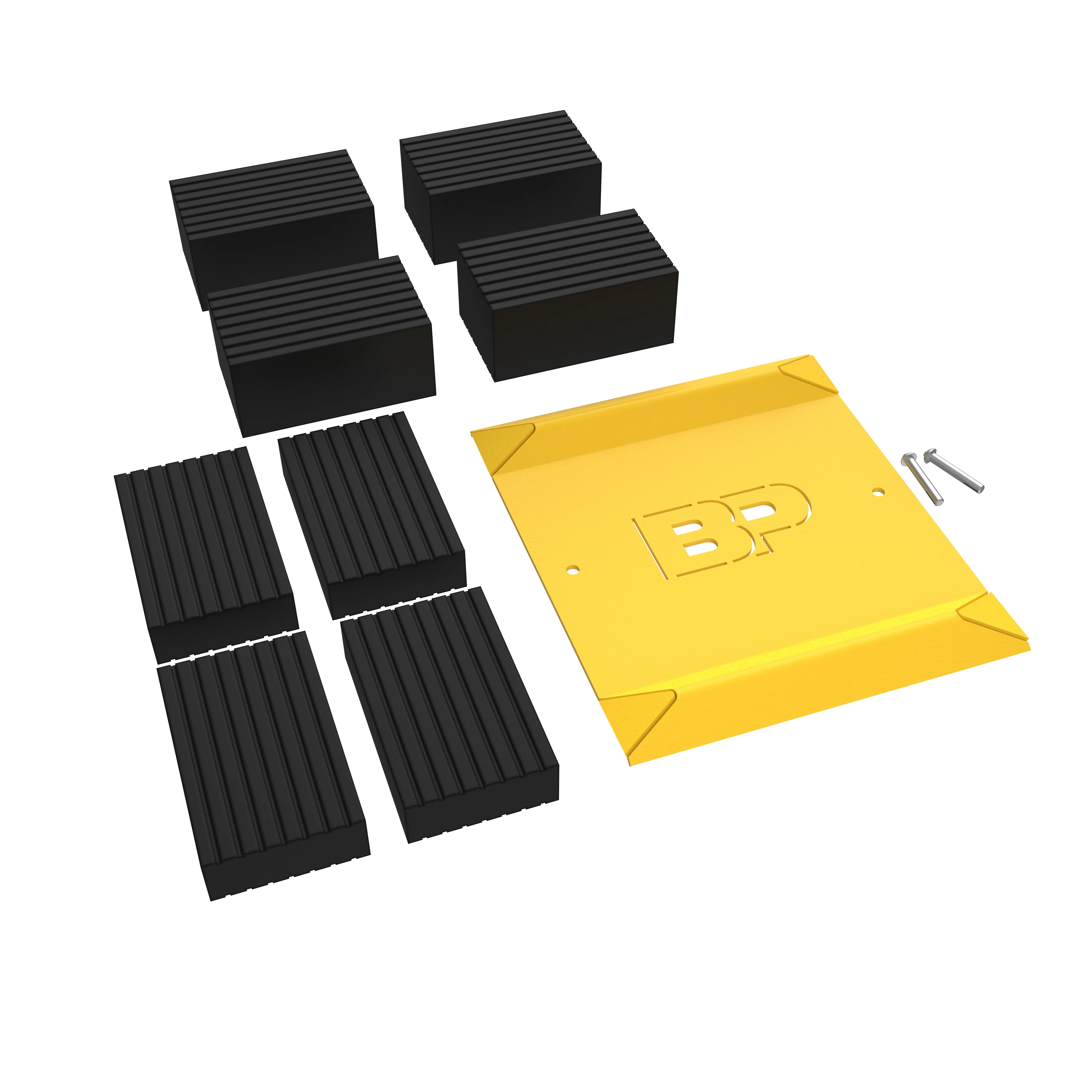

Durable rubber-topped pad surfaces and included rubber lift blocks help protect undercarriages and chassis during setup. For high-stance trucks, SUVs, and longer-wheelbase vehicles, an optional arm kit can provide additional reach, offset lifting, and extra height where needed. The rugged steel channel frame and powder-coat finish are built for years of shop use. With detailed instructions, safety decals, labels, and service support available, the P9000LTF gives facilities a recessed low-rise lift that works hard without taking over the floor.
Specifications
CAPACITY
Lifting Capacity 9000 lb
RISE
Max Lifting Height24 in
Max Lifting Height with Blocks27 in
Lowered Height4 in
Lifting Time45 seconds
LOCKING HEIGHTS
1st Locking Position15 in
2nd Locking Position19 in
3rd Locking Position21.5 in
4th Locking Position24.5 in
DIMENSIONS
Pad Length58.5 in
Pad Width24 inLength74.4 in
Width Between Platforms23 - 42 in
POWER UNIT AND VOLTAGE
Horsepower1.5 HP
Voltage208-230V / 60 Hz / 1-Phase
Sound Level40 dBA
SHIPPING AND DELIVERY
Shipping Dimensions40 x 77 x 24 in
Shipping Weight1134 lb
Shipping MethodLTL
Offload RequirementLiftgate
