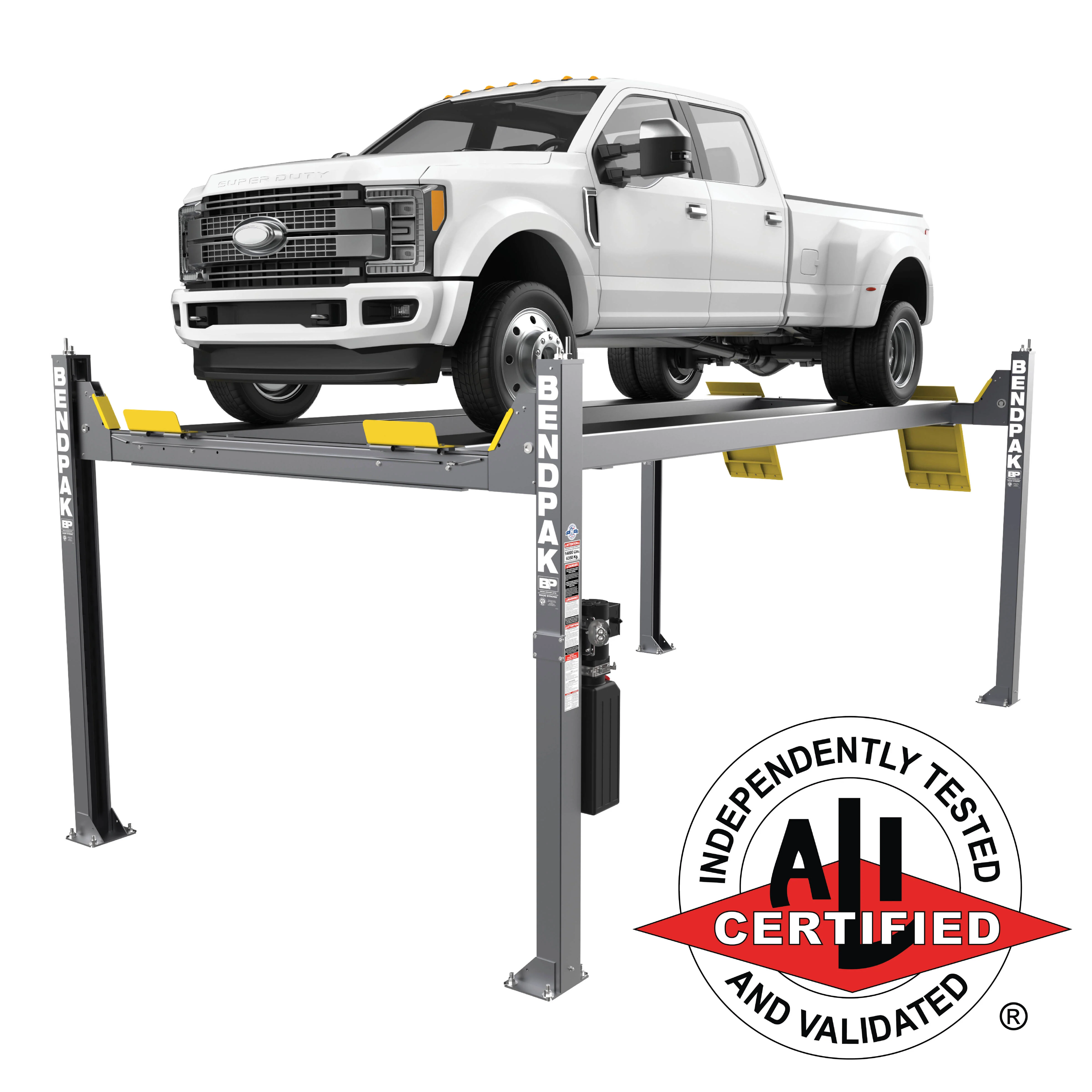

BendPak HDS14XT Four-Post Lift - 14,000-lbs. Capacity
USD 5,531
USD 7,902
SKU 5175624
Four-Post Lift / 14,000-lbs. Capacity / Extended Length / High Rise
Long-wheelbase vehicles need more runway, and the BendPak HDS14XT delivers with a 14,000-lbs. capacity extended-length four-post lift built for limousines, long-wheelbase trucks, SUVs, and oversized vehicles. Longer runways, added rise height, and heavy-duty construction give technicians more room, better access, and more flexibility for demanding service applications.
High-Rise Four-Post Clearance with 227.5-Inch Runway Reach
The BendPak HDS-14XT Four-Post Lift is built for shops that need more runway, more rise, and more room to work under larger vehicles. With a 14,000-lb. lifting capacity, extended 227.5-inch runways, and a higher lifting profile, this high-rise four-post lift is designed for limousines, extended trucks, large SUVs, and other vehicles that demand more space than a standard runway setup can provide. Its 83-inch maximum rise and 89.5-inch maximum lifting height give technicians the overhead clearance they need to stand more comfortably during undercar service. Less crouching and reaching means better workflow, reduced strain, and a more productive service bay for serious commercial shops.
Extended Four-Post Lift Design for Large Vehicle Service

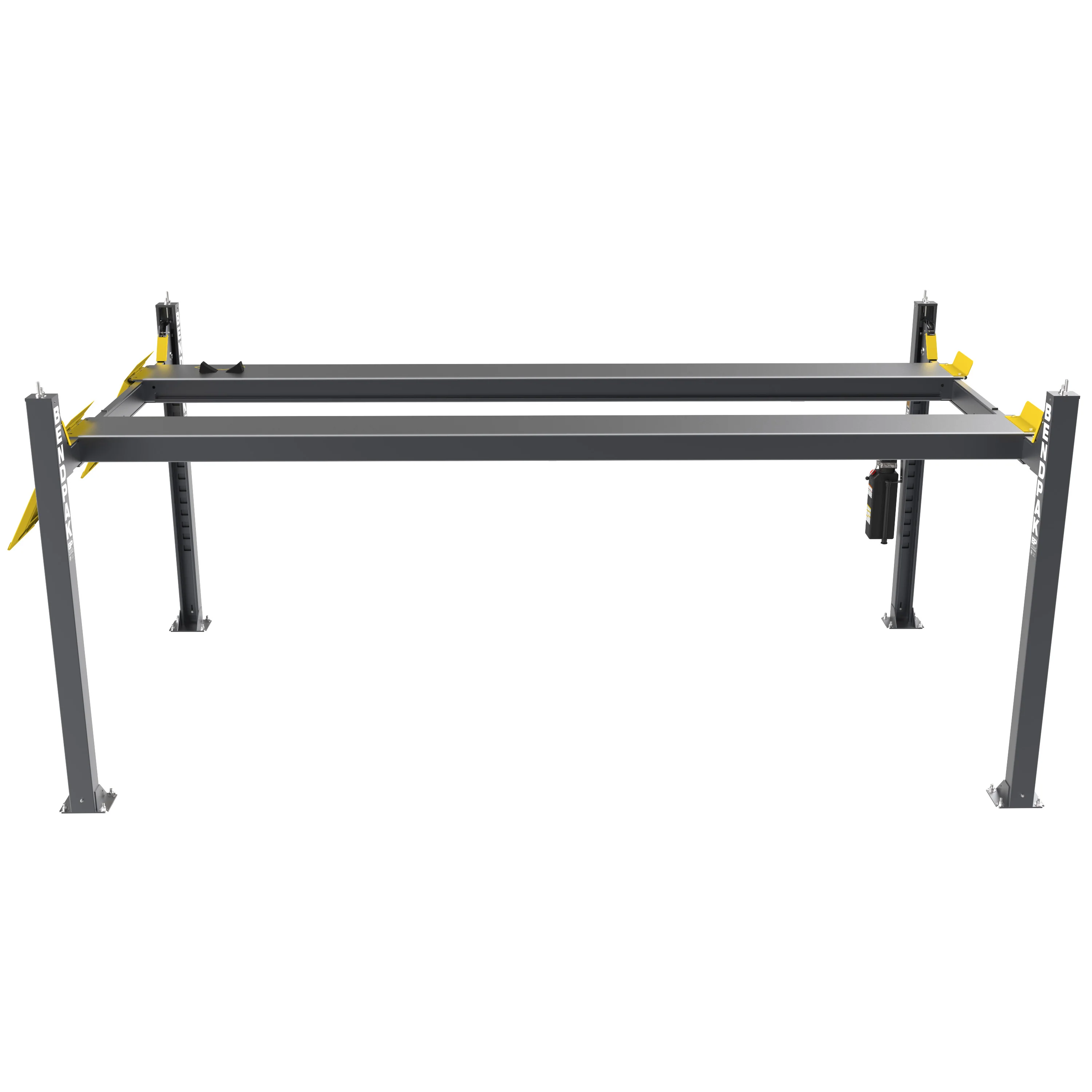

The HDS-14XT gives long-wheelbase vehicles the runway support they need while maintaining the stability BendPak four-post lifts are known for. Extended approach ramps help reduce the angle of ascent, making the lift friendlier to low-clearance vehicles and helping protect customer cars during drive-on loading. Runways include rail kits for optional accessories, allowing shops to configure the lift around their work. Whether the job calls for storage, inspections, undercar maintenance, or added wheel-service capability with optional rolling bridge jacks, the HDS-14XT gives larger vehicles a proper place to land.
Oversized Sheaves, Aircraft Cables, and Built-In Durability
The HDS-14XT is engineered for long-term durability with massive 10.5-inch dual-hub cable sheaves that help reduce cable wear over time. Four heavy-duty 1/2-inch stainless-steel aircraft-quality lifting cables provide the strength, abrasion resistance, and fatigue protection required for daily shop lifting. A single hydraulic cylinder beneath the runway powers the lift, while internal anti-sway slider blocks help support smooth, secure movement in each column. Heavy-duty base plates and customizable power unit location give installers and shop owners more flexibility when fitting the lift into a real working bay.
ALI Certified Safety for High-Rise Four-Post Lifting
The HDS-14XT is ALI Certified, giving shops added confidence that the lift meets recognized safety and performance standards. Automatic spring-loaded safety locks engage continuously as the lift rises, while adjustable safety ladders help maintain precise runway leveling, even when floors are not perfectly even. Independent backup slack-cable safety latches add another layer of protection, and the pneumatic push-button safety release makes lowering operations simple and efficient. Fully enclosed cables, sheaves, and safety systems help reduce pinch points while keeping critical components protected during daily use.
Specifications
CAPACITY
Lifting Capacity14000 lb

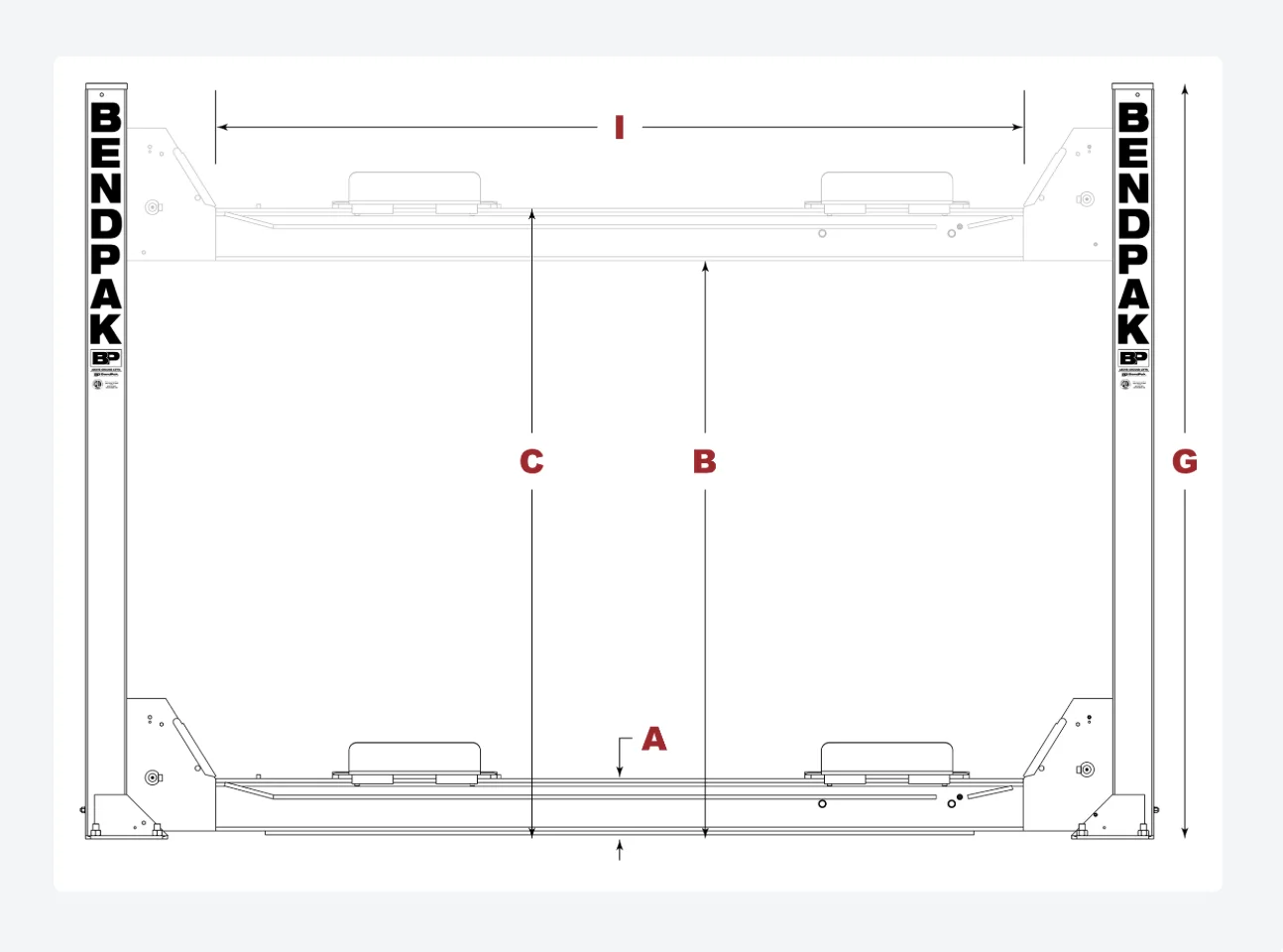

RISE
A Min Runway Height 7.5 in
B Max Rise 82.75 in
C Max Lifting Height 89.5 in

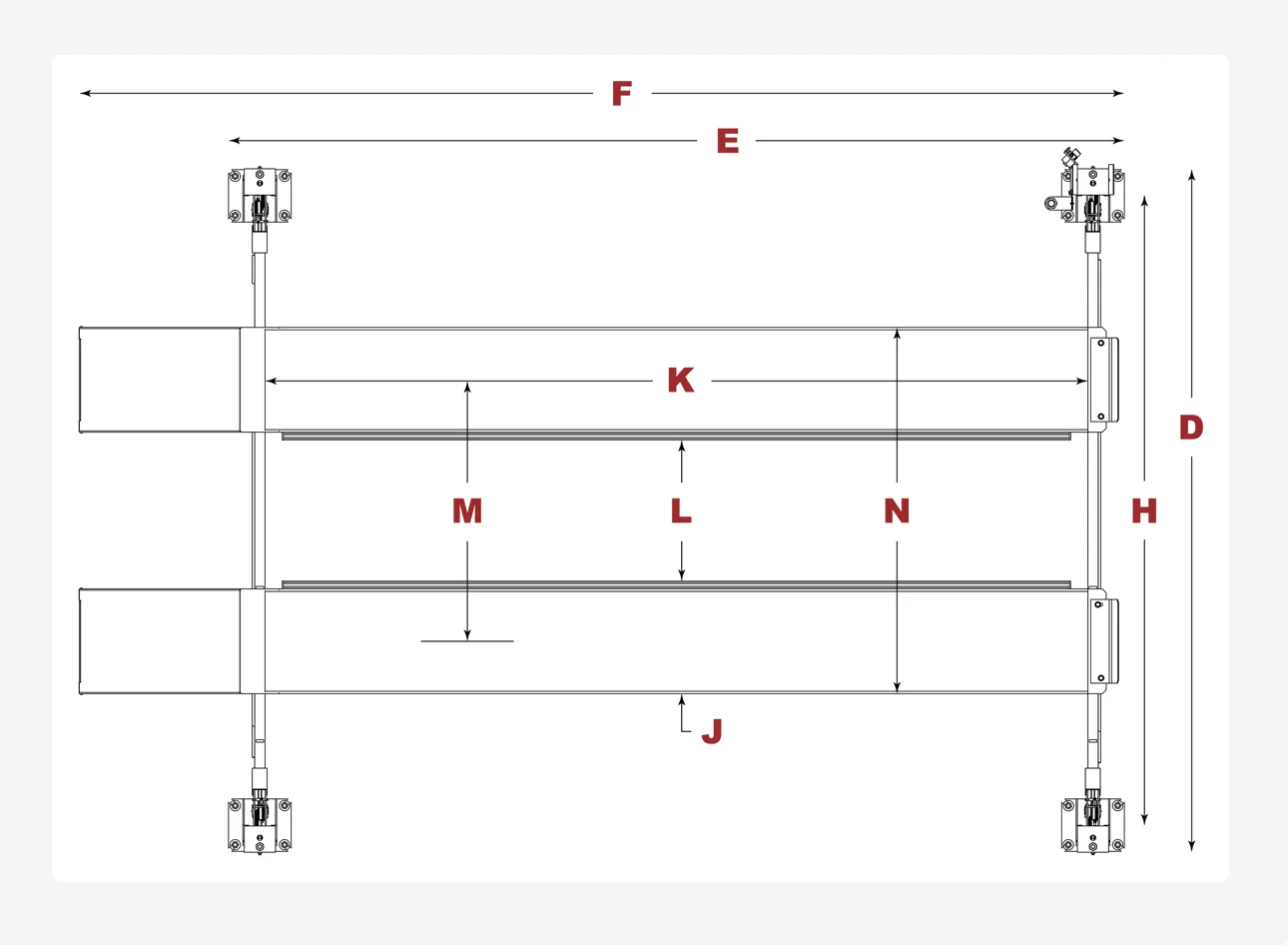

OUTSIDE DIMENSIONS
D Width130 in
E Outside Length243 in
F Overall Length272 in
G Height104 in
INSIDE DIMENSIONS
H Inside Columns120 in
I Drive-Thru Clearance80.75 in
RUNWAYS
J Runway Width 20 in
K Runway Length 227.5 in
L Width Between Runways 34.5 - 41.5 in
M Runway Centerline 57.5 - 64.5 in
N Outside Edge of Runways 77.5 - 84.5 in
MINIMUM WHEELBASE
Rated Wheelbase Capacity160 in
25% Capacity95 in
50% Capacity115 in
75% Capacity140 in
LOCKING
Locking Positions18Locking Spacing4 in
POWER UNIT AND VOLTAGE
Horsepower 2 HP
Voltage 208-230V / 60 Hz / 1-Phase
Sound Level 45 dB
SHIPPING AND DELIVERY
Shipping Dimensions 23 x 239 x 43 in
Shipping Weight 2740 lb
Shipping Method Flatbed
Offload Requirement Forklift
