DESCRIPTION

Clearfloor Power for Serious Shops

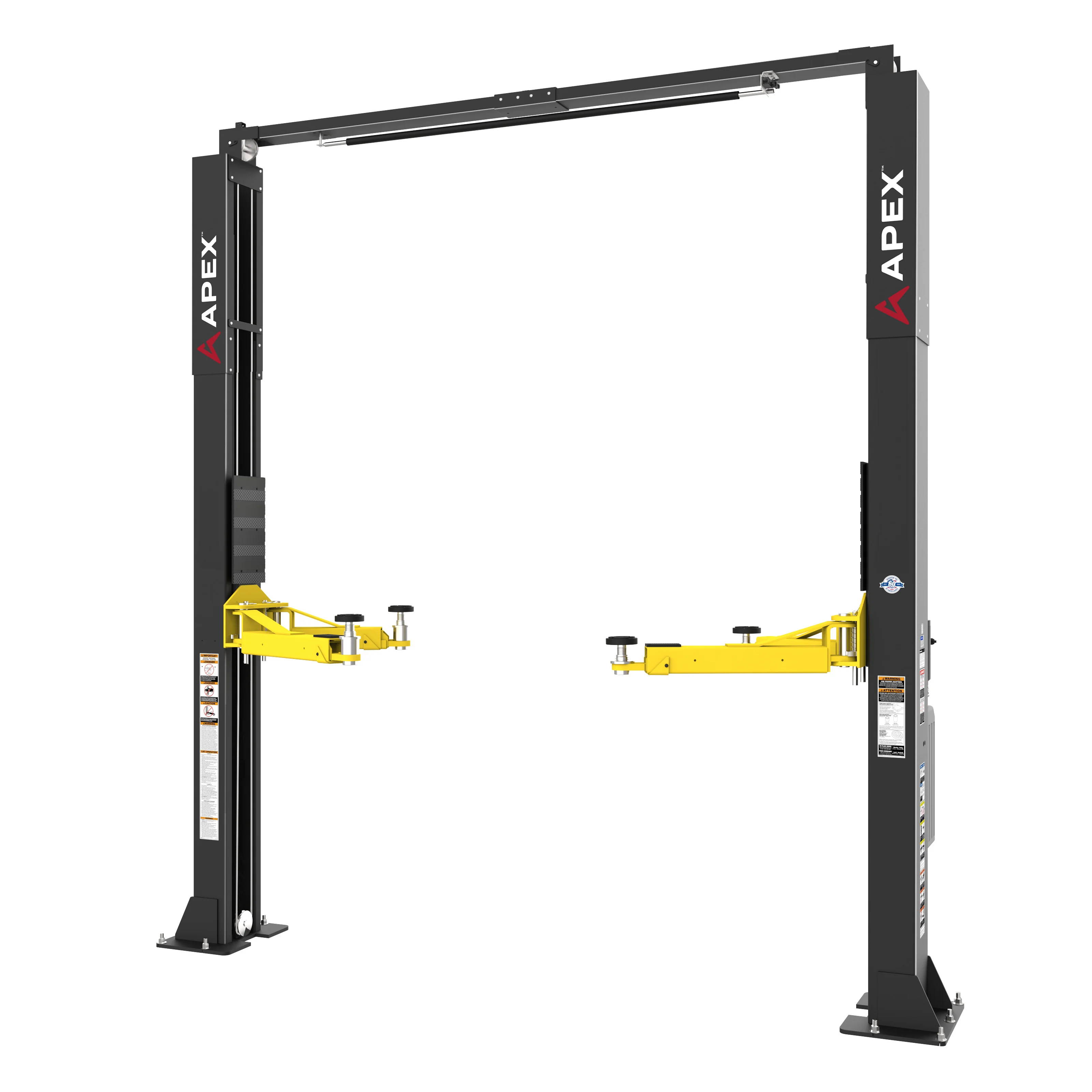

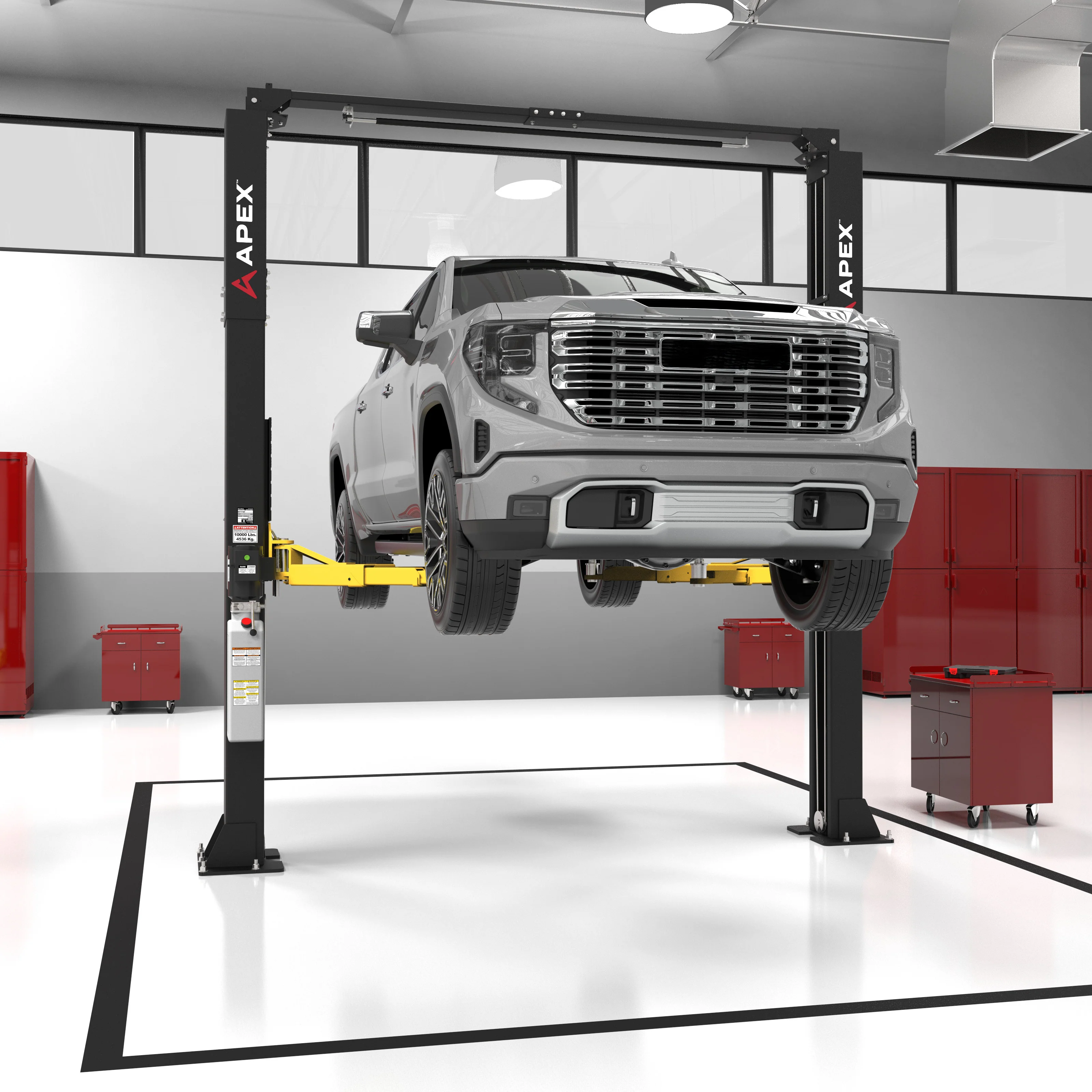

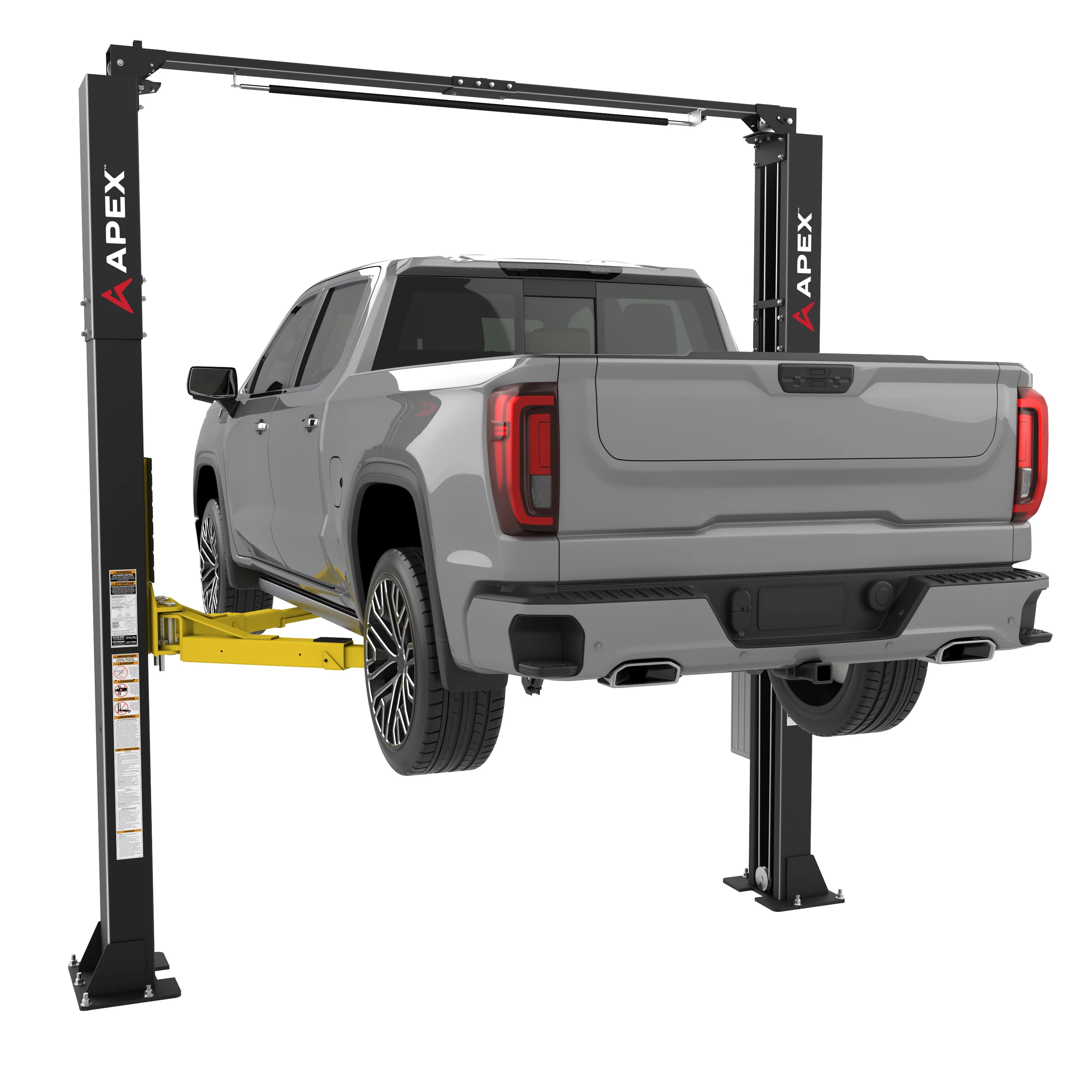

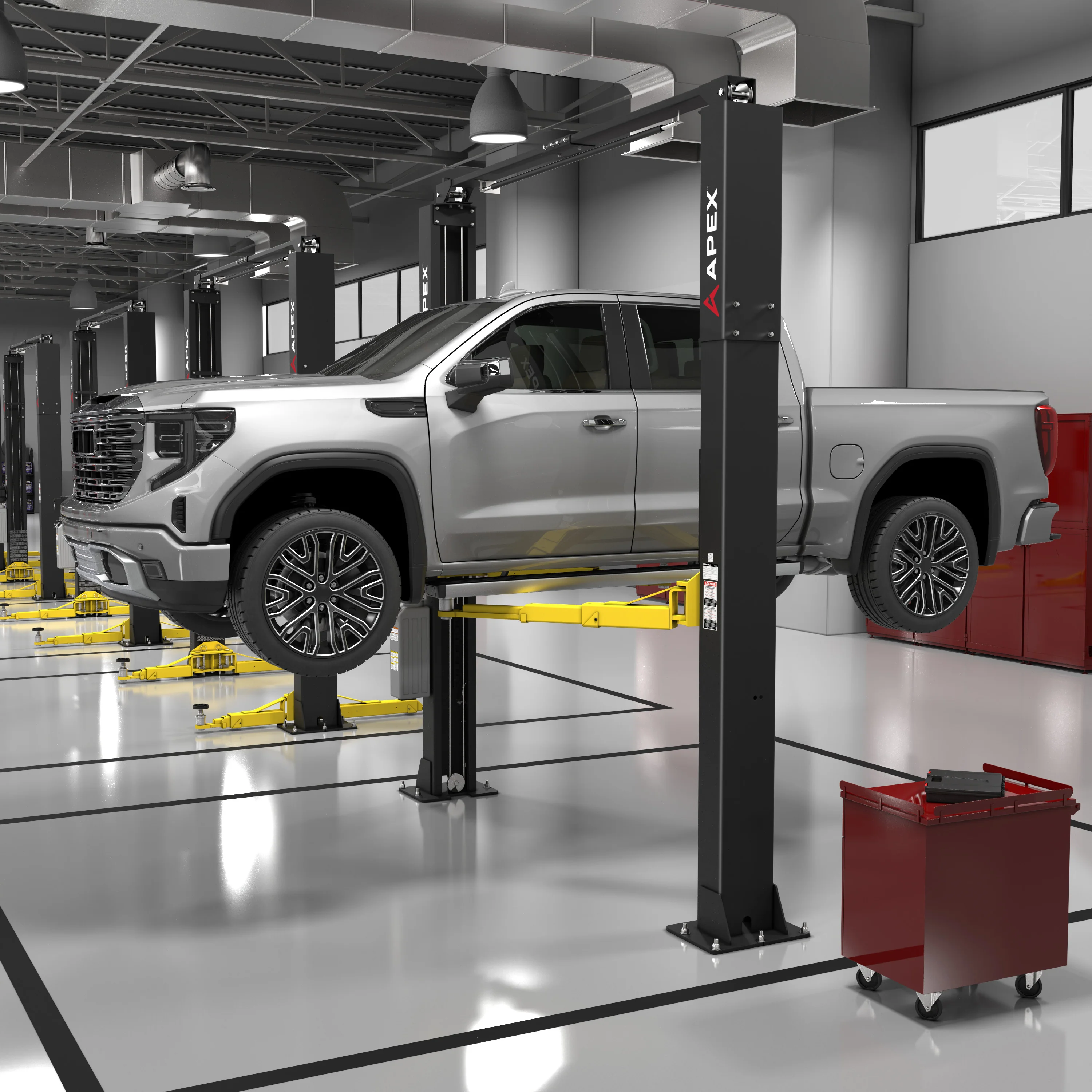

The APEX AL10C Clearfloor Two-Post Lift is built for professional shops and serious garages that want open floor access beneath the vehicle. With a 10,000-lb. lifting capacity and clearfloor design, the AL10C eliminates the floor beam found on traditional floorplate lifts so transmission jacks, oil drains, tool carts, and other shop equipment can move freely under the raised vehicle. This clearfloor two-post lift is designed for better workflow, cleaner bay movement, and easier service access across passenger cars, performance vehicles, light trucks, and lifted vehicles. For users comparing APEX two-post lifts, the AL10C is the higher-capacity clearfloor choice for shops that want unobstructed floor space and a direct-drive hydraulic lifting system.

Clearfloor Access with Flexible Vehicle Positioning

The AL10C is designed to make vehicle setup faster while keeping the service bay easier to work around. Symmetric and asymmetric arm configurations allow technicians to adapt the lift setup to different vehicle sizes, frame designs, and weight distribution needs.

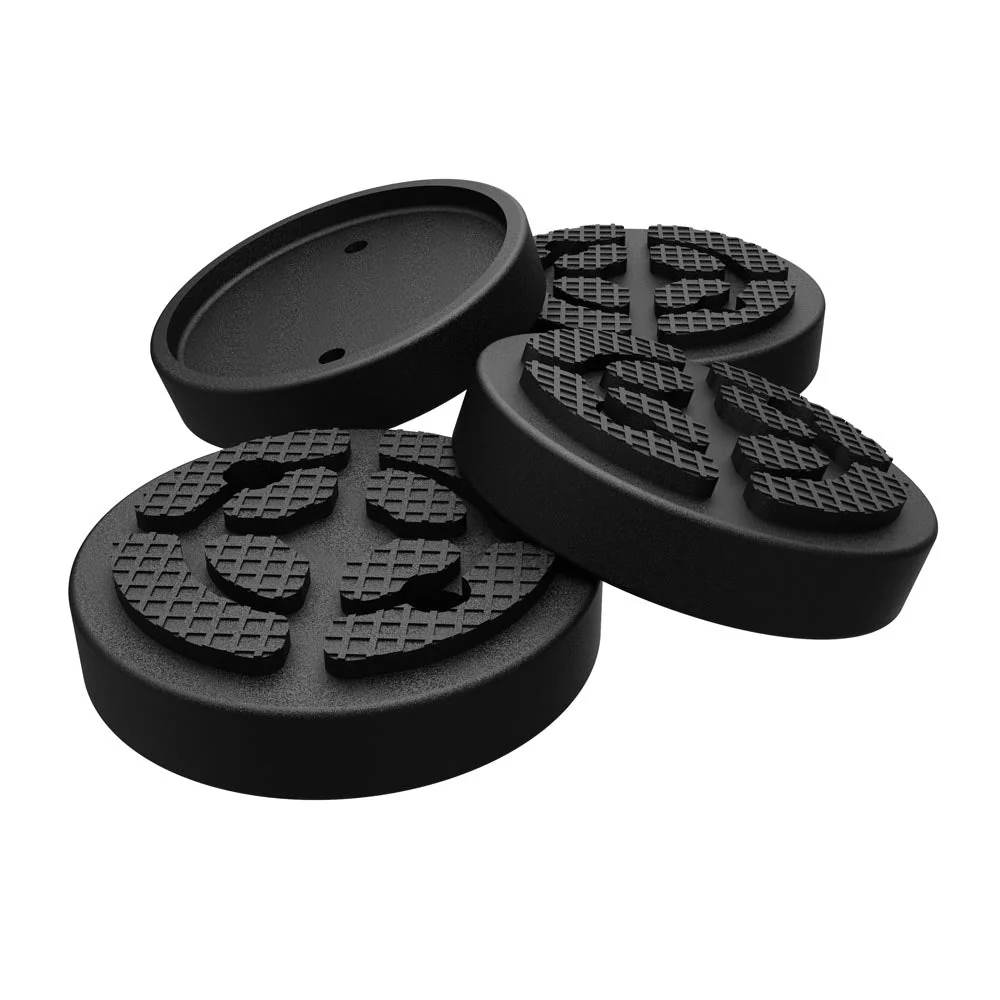

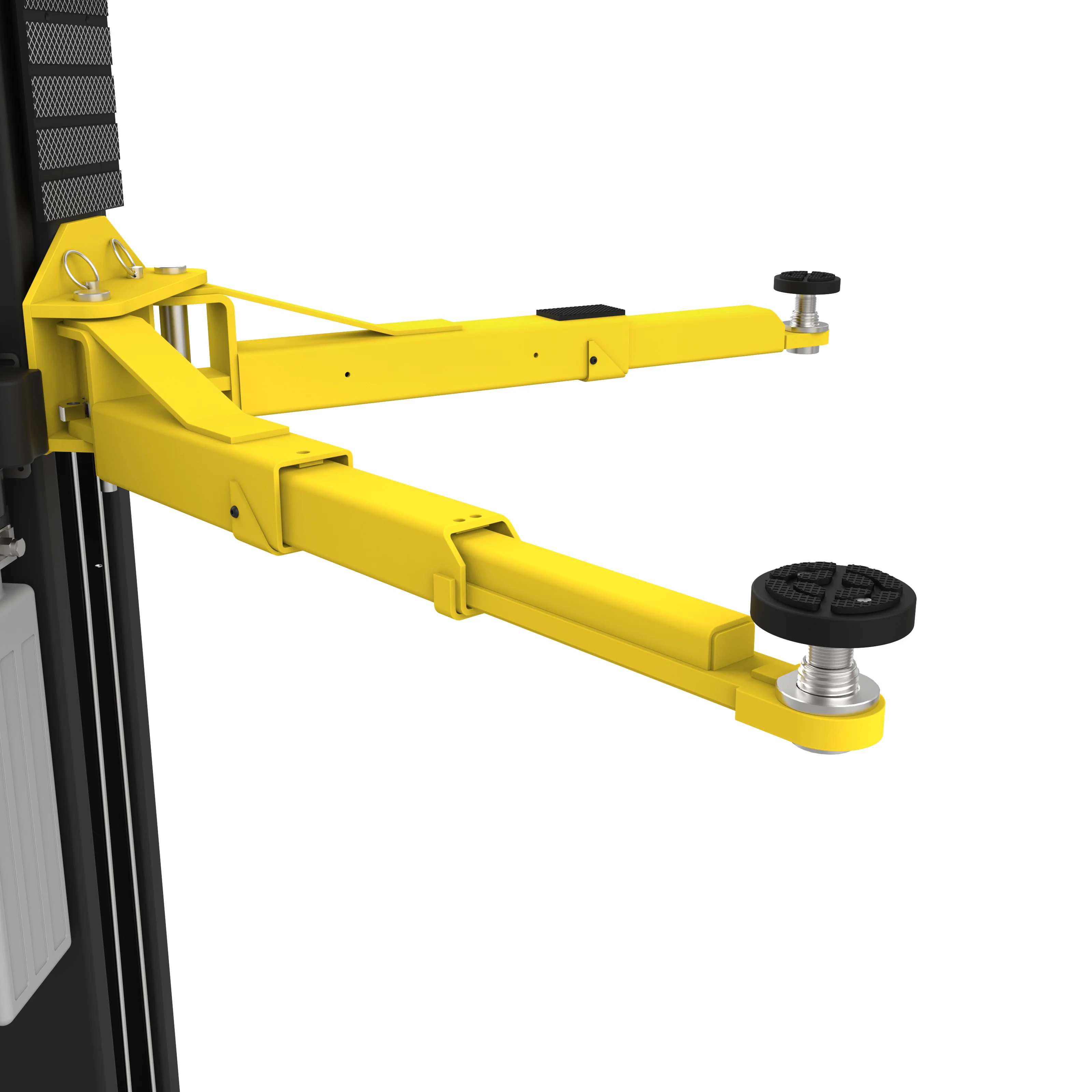

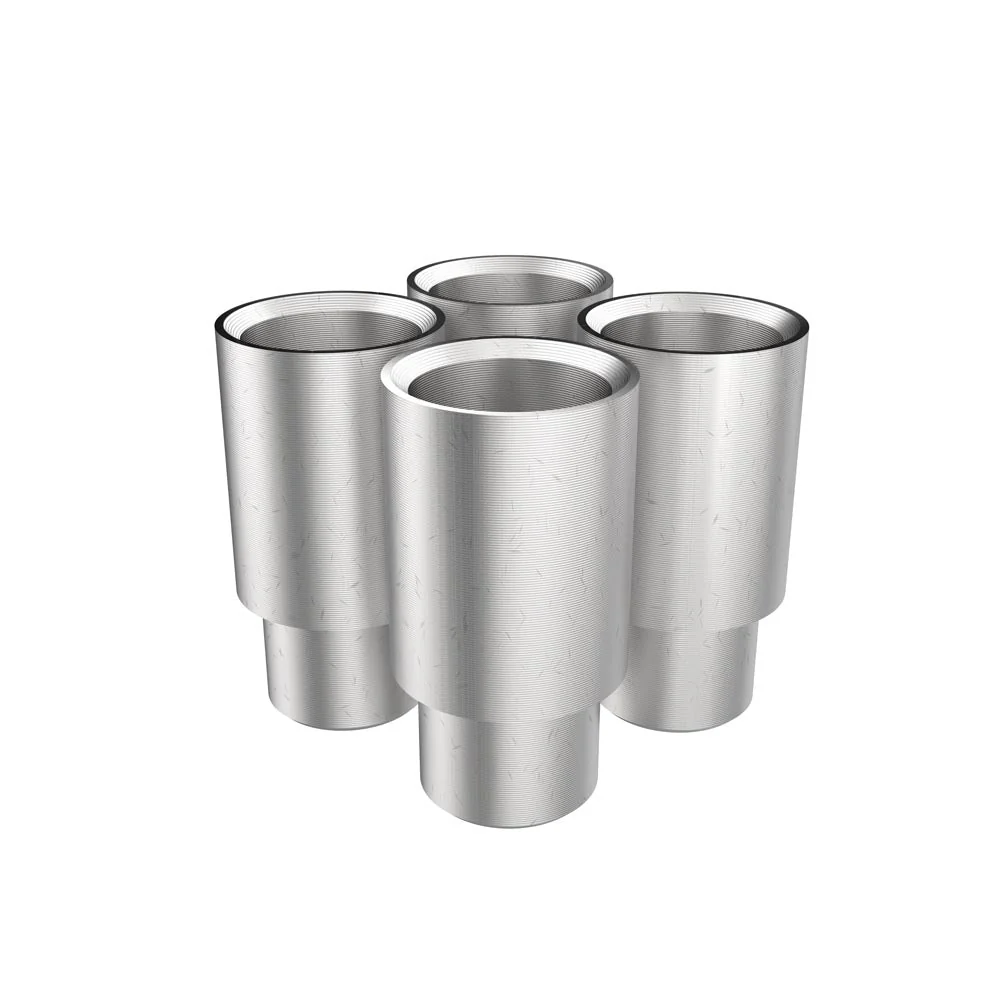

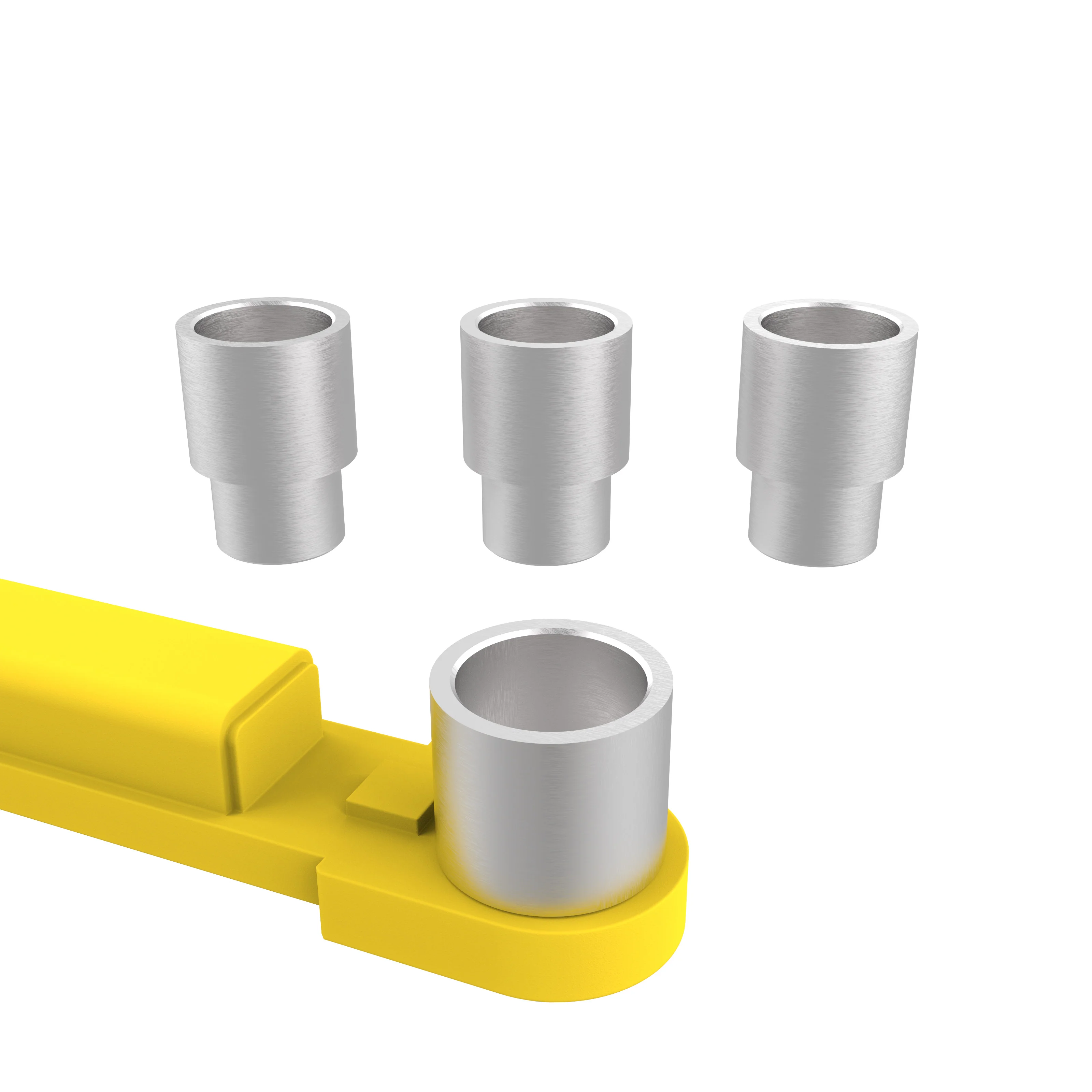

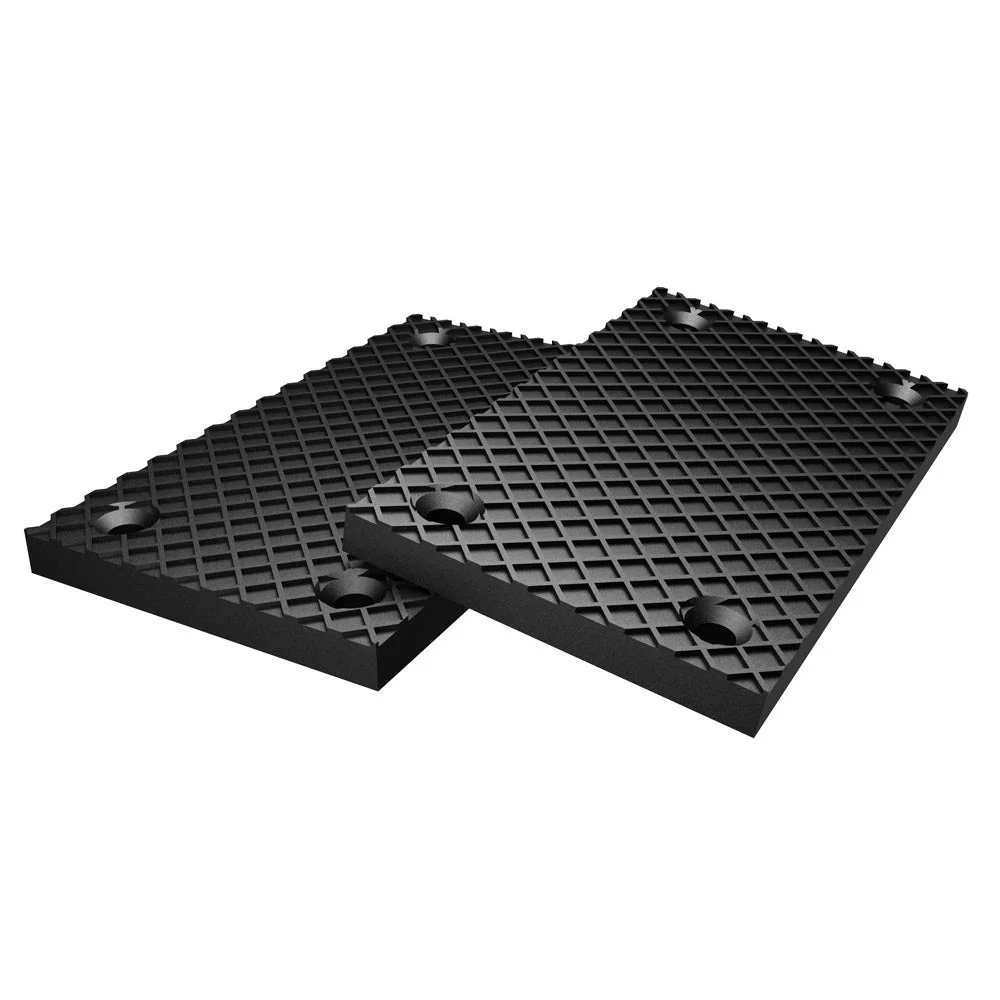

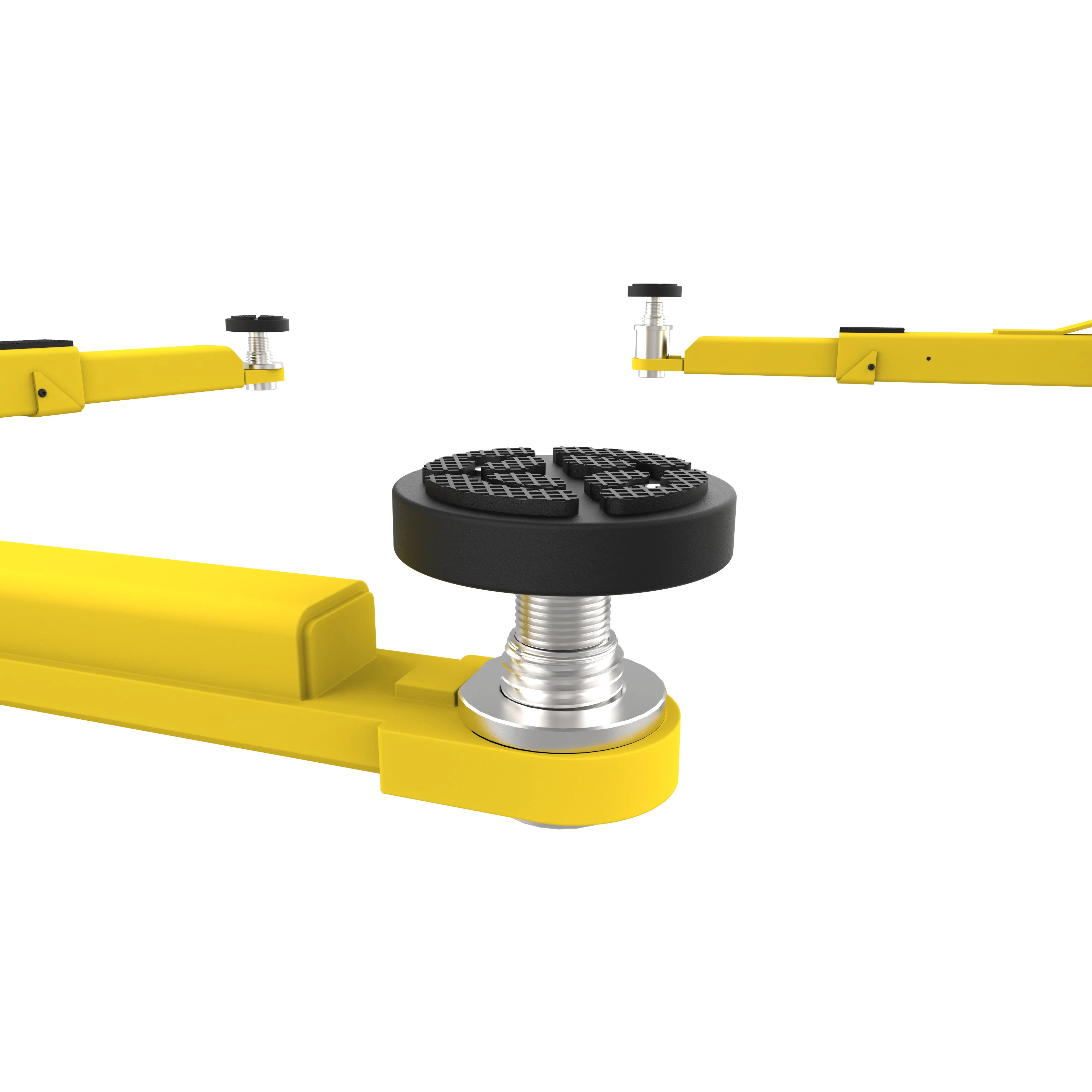

Triple-telescoping front arms and dual-stage extended rear arms provide broad reach for a wide range of wheelbases. Double-telescoping screw pads with tear-resistant polyurethane non-slip pads, along with the included 4-piece 63 mm stackable adapter set, help create secure lifting contact across different vehicles and service applications.

Direct-Drive Hydraulics with Overhead Structural Support

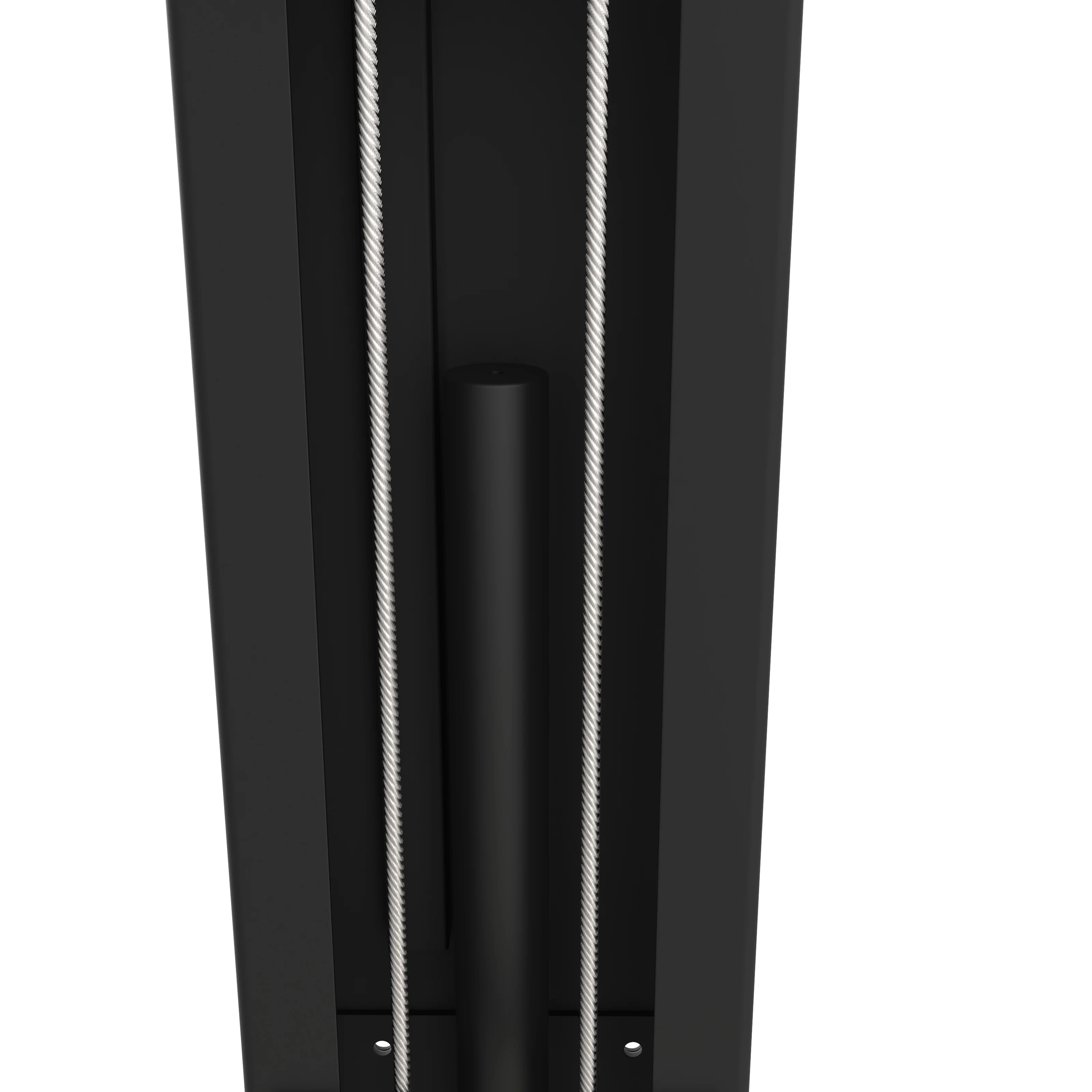

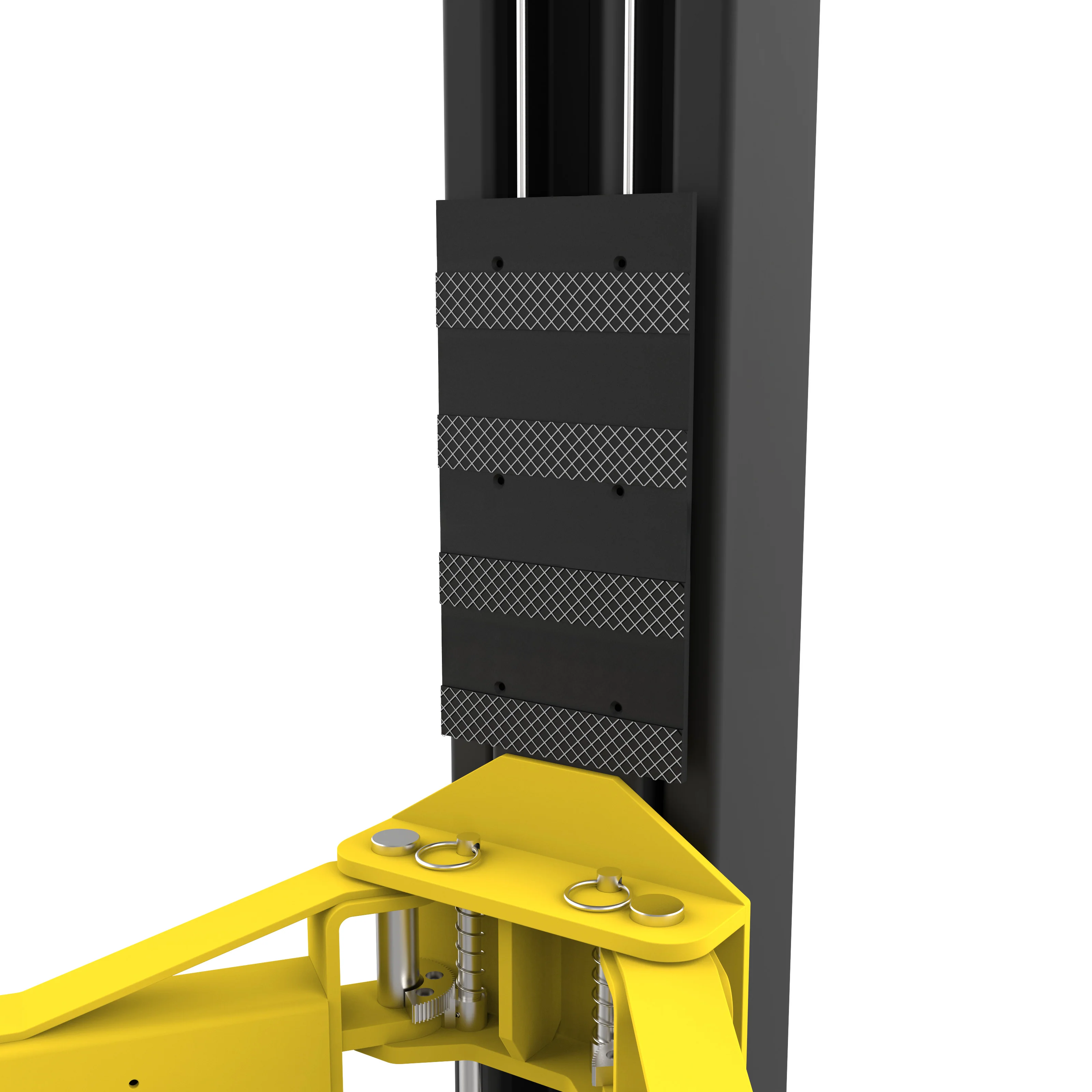

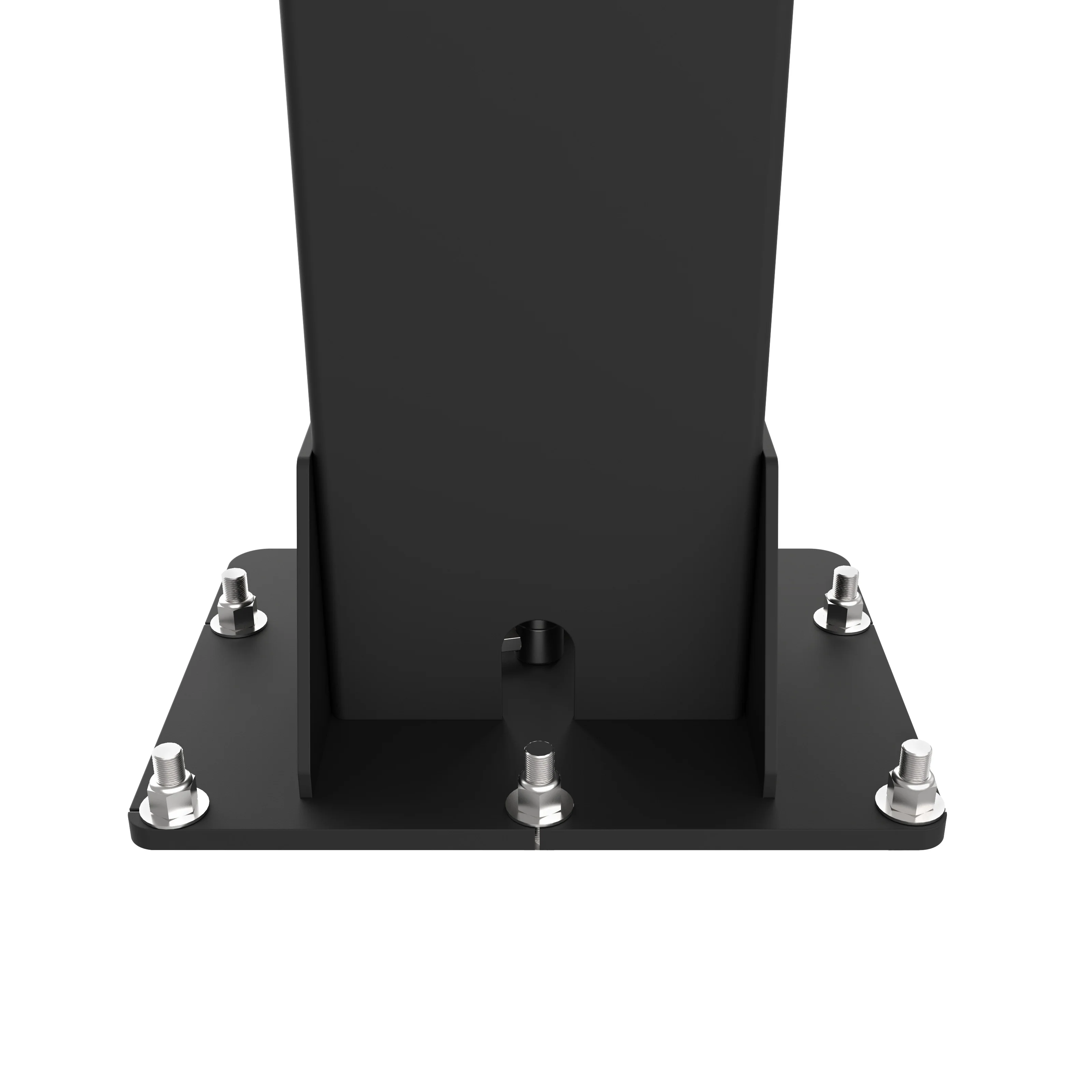

The AL10C features a direct-drive hydraulic design with dual full-stroke hydraulic cylinders. By reducing the number of moving parts compared with more complex lifting systems, the direct-drive setup helps minimize wear while delivering smooth, consistent lift operation for daily shop use. A rugged overhead box-beam structure reinforces the lift frame, reduces column stress, and supports overall stability. Heavy-duty 6-inch by 6-inch tubular steel carriages, oversized base plates, self-lubricating UHMW polyethylene guide blocks, oversized cable sheaves, and aircraft-quality equalizer cables all contribute to long-term durability.

Safety Locks, Overhead Shutoff, and Long-Term Support

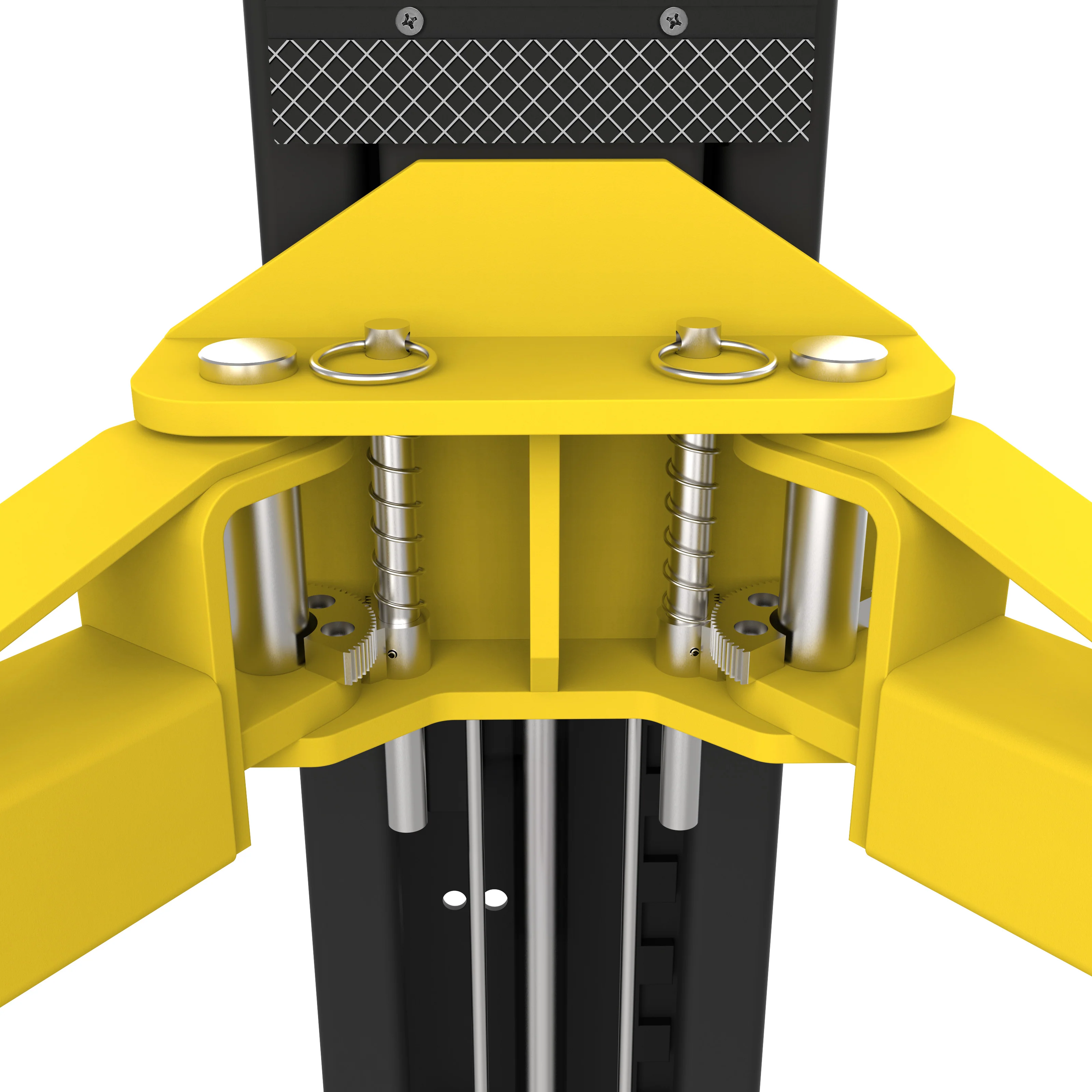

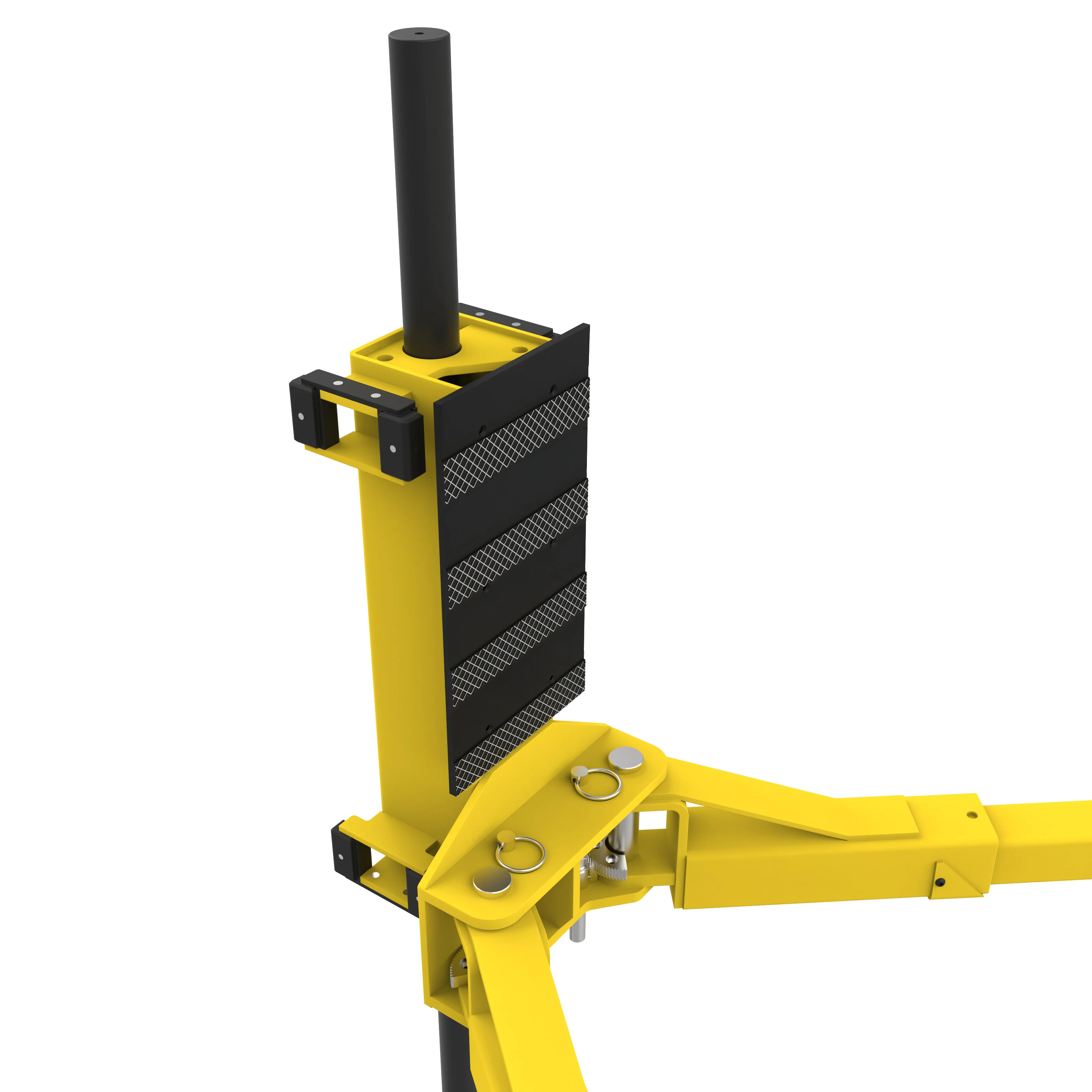

The AL10C includes automatic safety locks that engage every 3 inches throughout the lifting range, helping hold vehicles securely at working height. Single-pull lanyards on each carriage make lock release straightforward, while automatic arm restraints help prevent unintended arm movement after the vehicle is raised. A padded overhead safety shutoff bar with an industrial-grade limit switch automatically stops lift travel if a vehicle is raised too high. Previously sold under the GrandPrix name, the AL10C now joins the APEX lineup with the same clearfloor architecture, direct-drive lifting system, structural components, and BendPak-backed 36-month limited warranty.

Specifications

CAPACITY

Lifting Capacity10000 lb

Max Capacity Per Arm2500 lb

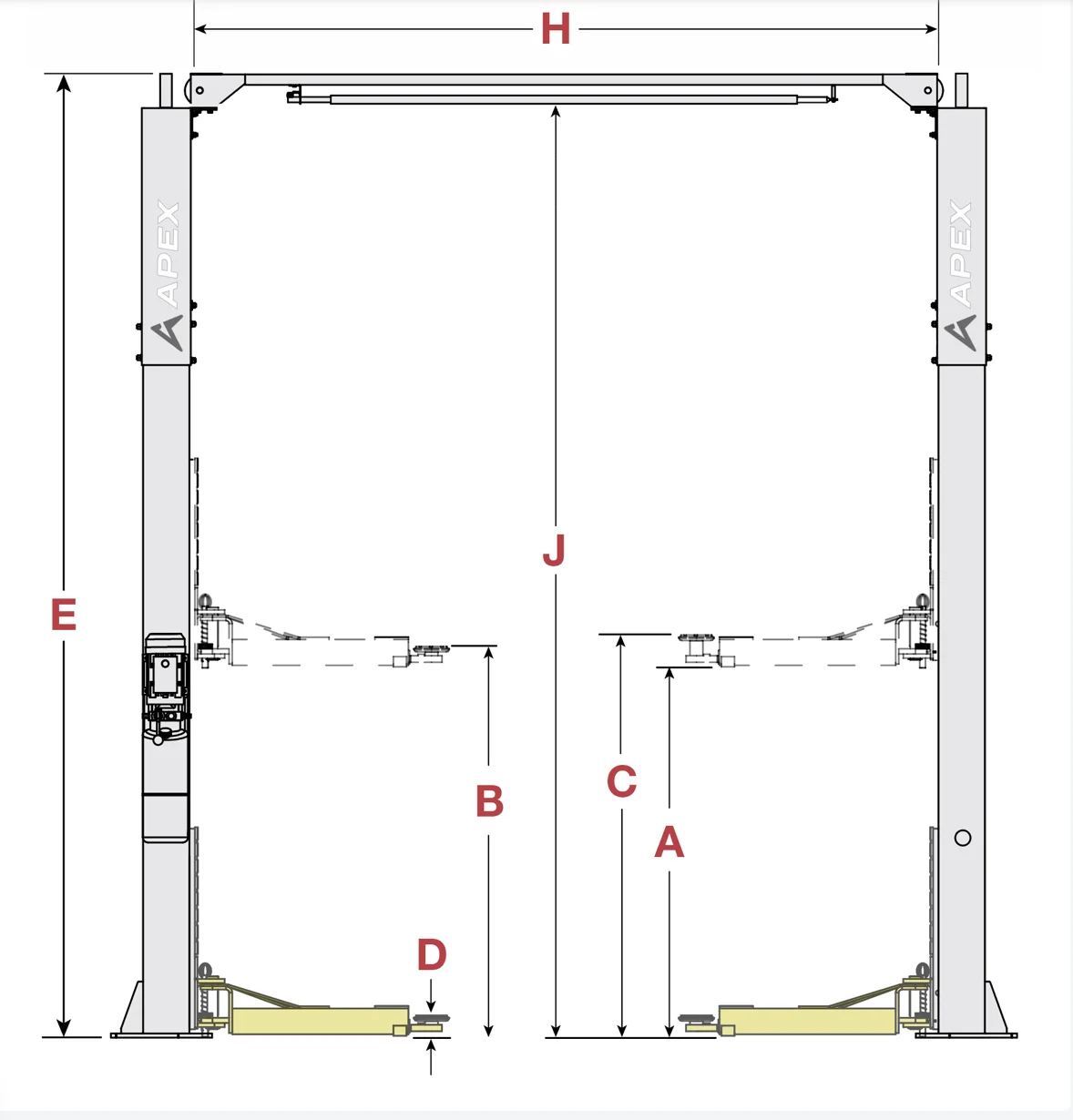

RISE

A Rise70 in

C Max Lifting Height with Pad76.5 in

D Min Lifting Height with Pad3.9 in

Lifting Time 65 seconds

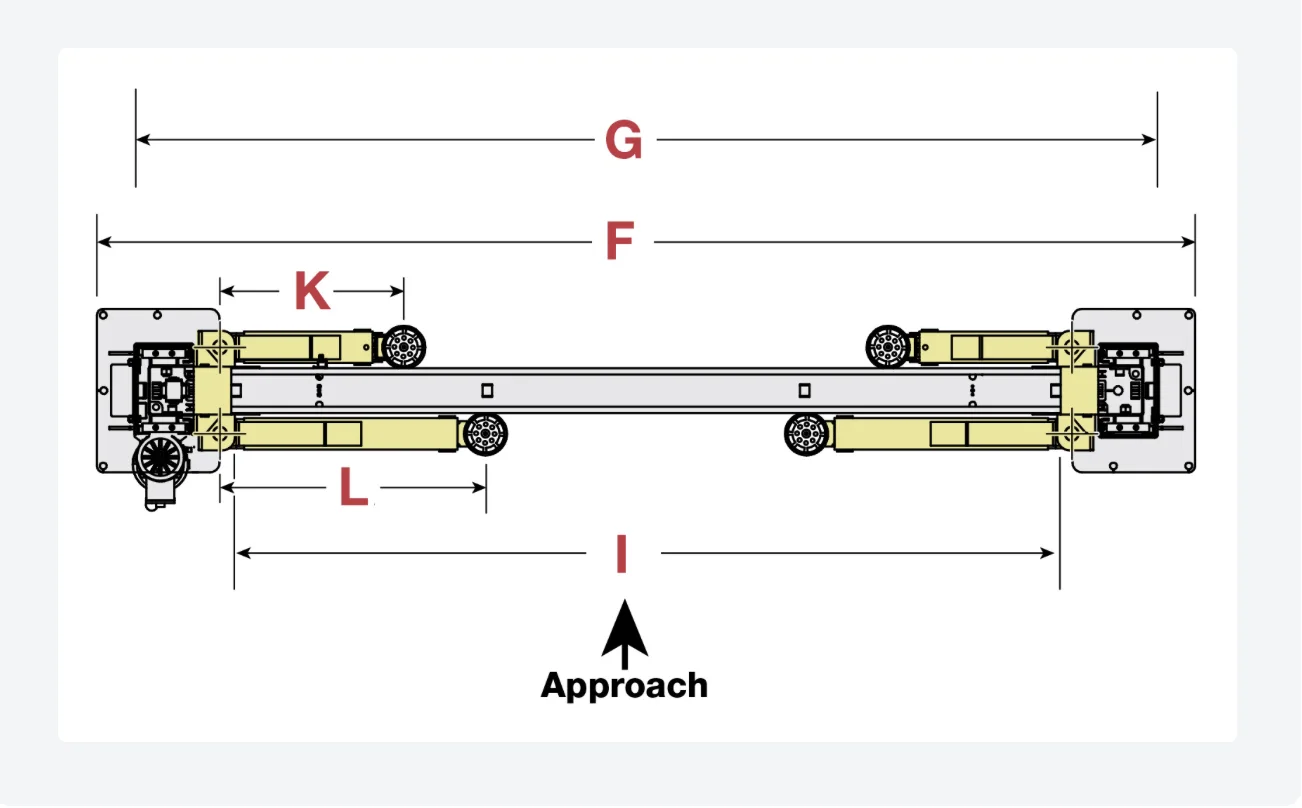

OUTSIDE DIMENSIONS

E Height148 in

F Width137.5 in

G Outside Columns128.5 in

INSIDE DIMENSIONS

H Inside Columns114.5 in

I Drive-Thru Clearance103 in

J Floor to Overhead Switch142.5 in

ARMS AND PADS

K Front Arm Reach Min22.5 in

K Front Arm Reach Max43.25 in

L Rear Arm Reach Min33.5 in

L Rear Arm Reach Max53.25 in

Screw Pad Adjustment2 in

POWER UNIT AND VOLTAGE

Horsepower5 HP

Voltage208-230V / 60 Hz / 1-Phase

Sound Level< 70 dB

SHIPPING AND DELIVERY

Shipping Dimensions27 x 114 x 29 in

Shipping Weight1536 lb

Shipping MethodFlatbed

Offload RequirementForklift
